Finborough Infrared illuminators

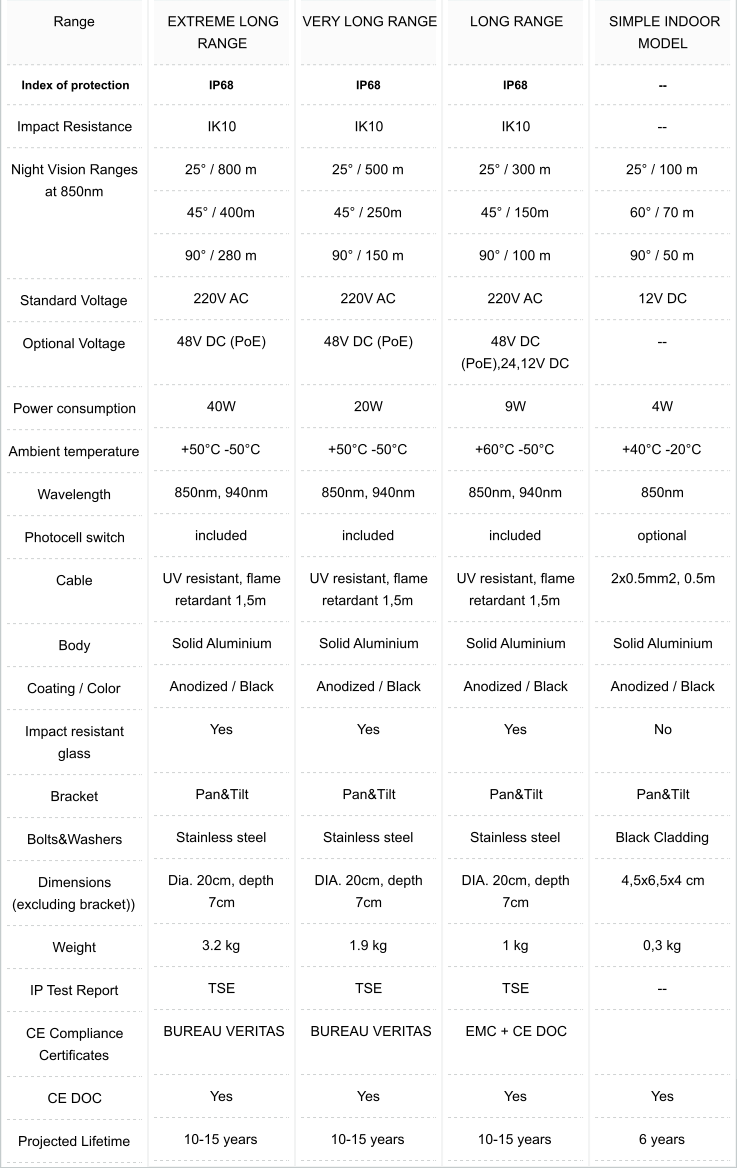

Comparison table

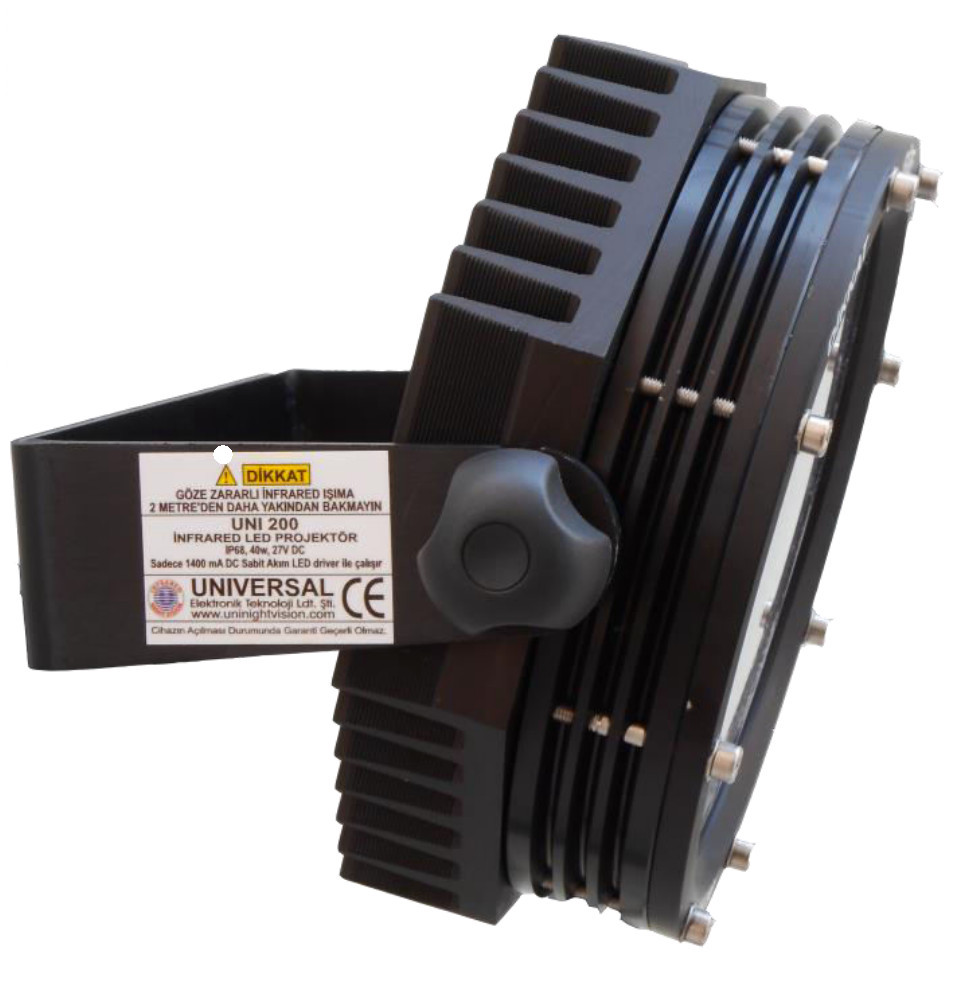

Uni-200
|
APPLICATIONS:
- Extreme long range night vision for Security Forces
- Night vision up to 1000m.
- Very Special Military Night Vision applications (You have to contact us
in writing to get info for these applications)
- Wide angle & long range speed dome or PTZ systems
- Car plate reading at distances more than 100m
IDEAL FOR VERY LONG RANGES AND VERY SPECIAL MILITARY APPLICATIONS
|
 |

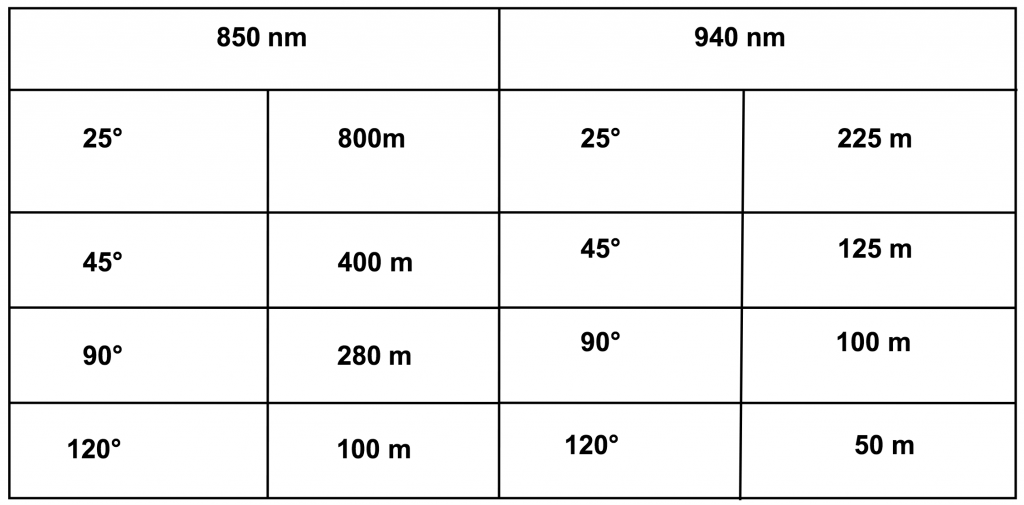

NIGHT VISION RANGES AT ABSOLUTE DARKNESS
Ranges have been obtained by 0.01 lux D/N box camera and zoom lens combin
 |
 |

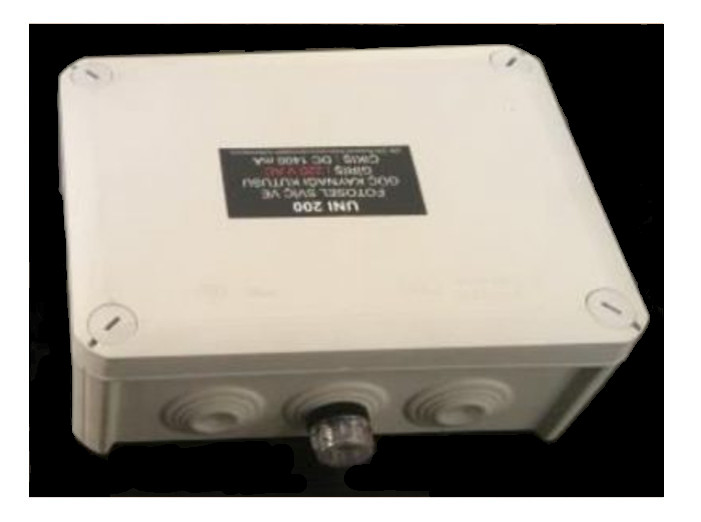

Photocell switch & led driver box
IP66, 19x15x8cm
|

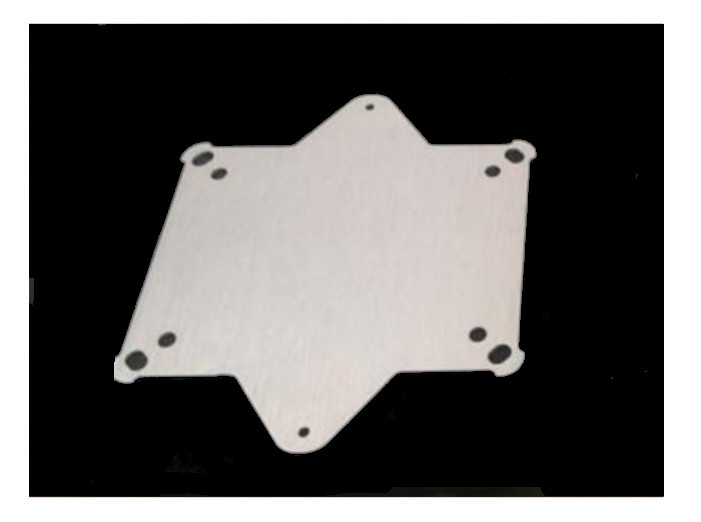

Pole mounting plate for the box |

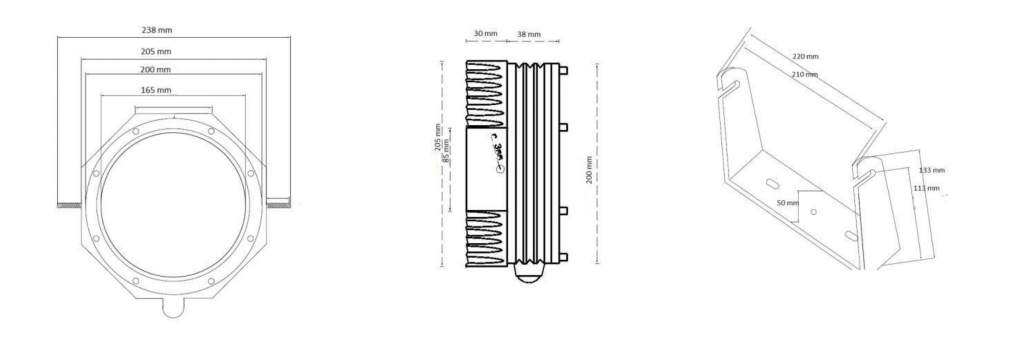

DIMENSIONS

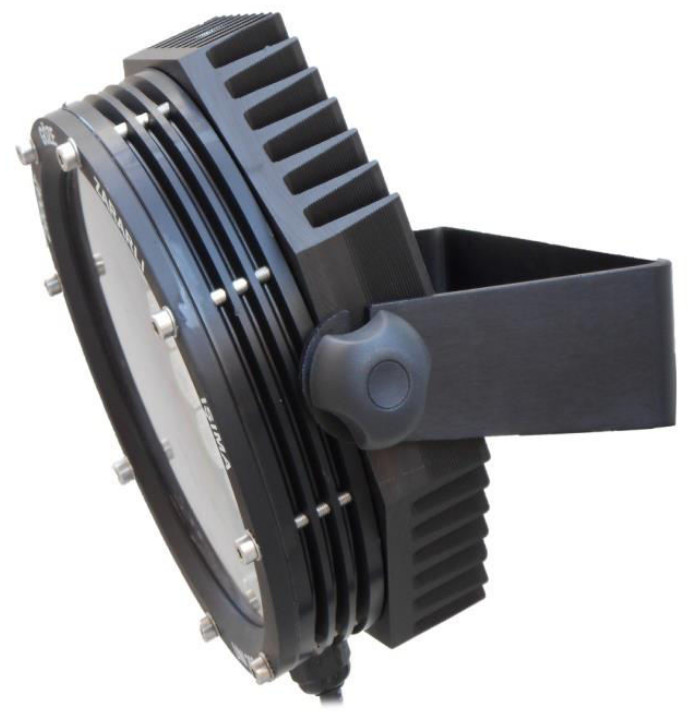

Uni-100
APPLICATIONS:
- Wide angle and long range MP, IP CCTV Systems
- Narrow angle and very long range CCTV Systems
- Speed dome and PTZ applications
- Car plate reading at 50m+ distances
- Land and Sea vehicle applications
IDEAL FOR WIDE ANGLE AND LONG RANGE ANALOG AND IP CCTV
- 500+ meter night vision at absolute darkness. Very high infrared radiation
- IP 68, Highest protection against dust and water
- IK10 Highest impact resistance
- UV resistant cable and accessories
- Stainless metal accessories
- 850 nm and 940 nm wave length options
- 220V AC, 48V DC PoE, 12V DC versions
- Automatic day/night operation by photocell switch
- Power Led technology
- 95% saving compared to conventional lamps
- 10+ years projected lifetime
- Quality Certificates from independent organiisations.
- OPTION: Radiation power adjustment (over the device, remote control and software)
- OPTION:MIL-STD-461F
|
 |

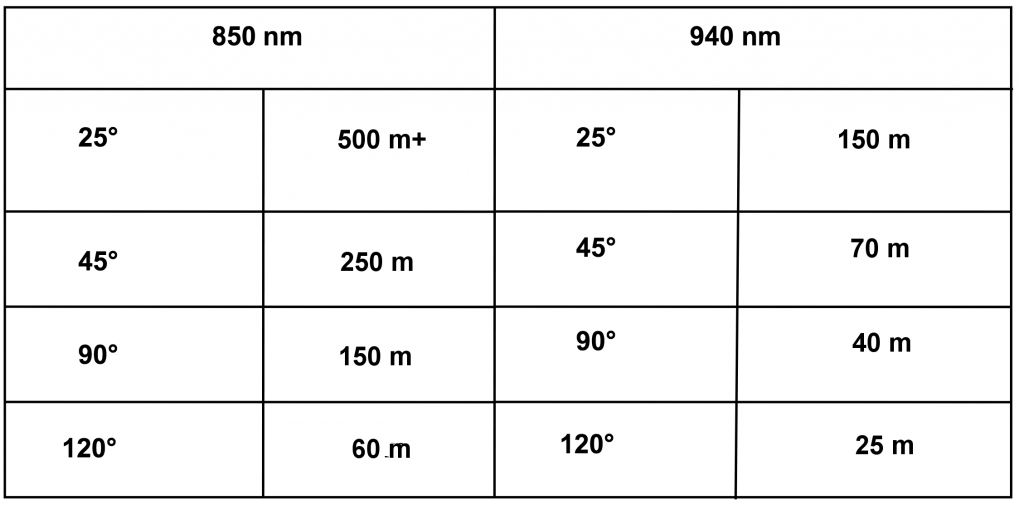

NIGHT VISION RANGES AT ABSOLUTE DARKNESS
Ranges have been obtained by 0.01 lux D/N box camera and zoom lens combin

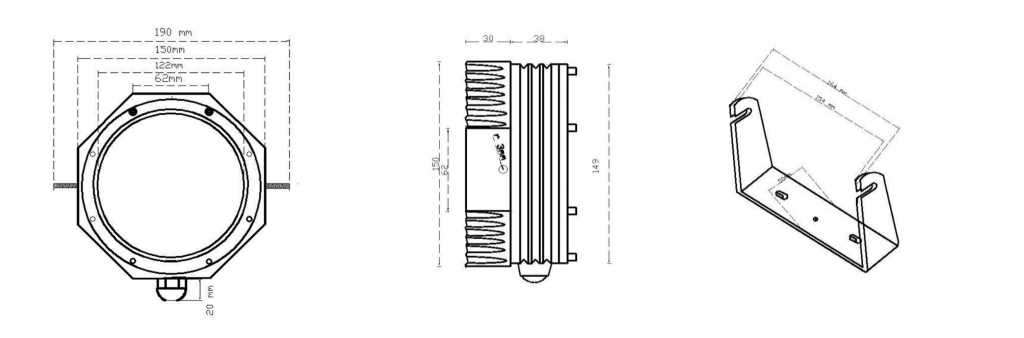

DIMENSIONS

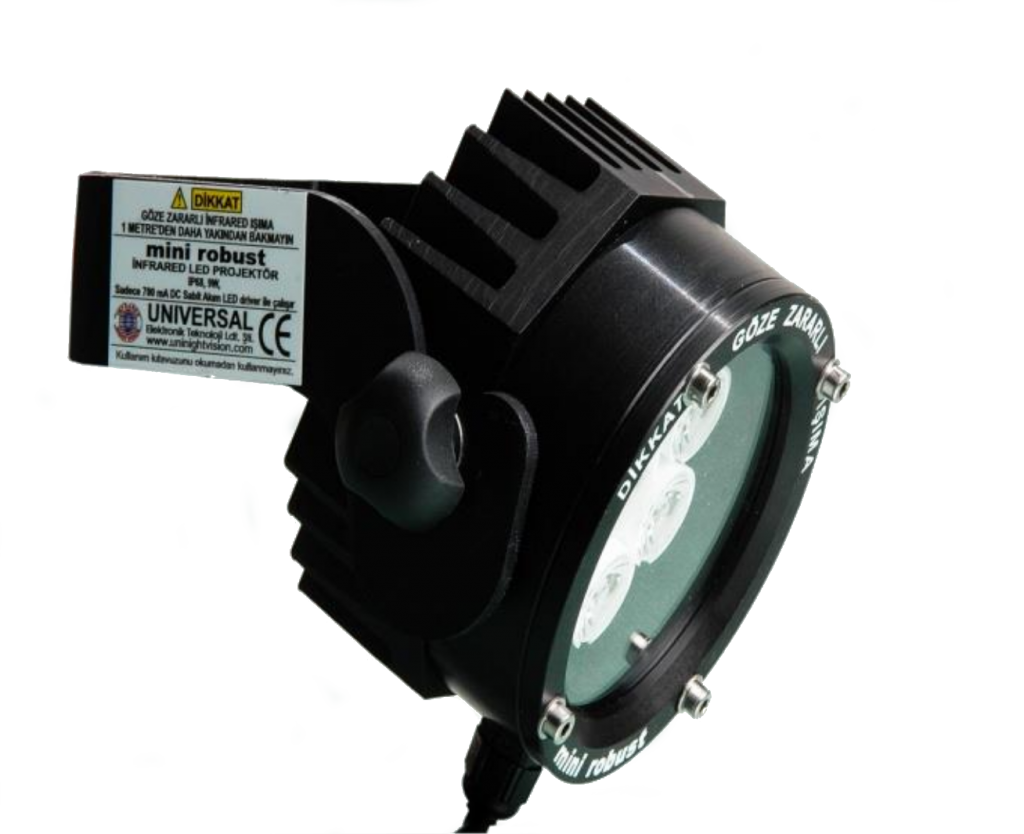

Mini Robust
|
APPLICATIONS:
- All kinds of analog or MP IP fixed camera applications
- Car Plate reading systems
- Military and security forces vehicle applications
- Pan Tilt motorized camera/zoom applications
IDEAL FOR ALL KINDS OF FIXED CAMERAS, PLATE RECOGNITION AND MILITARY VEHICLE APPLICATIONS.
- Night vision range up to 300m
- IP 68, Highest protection against dust and water
- IK10, Highest impact resistance
- UV resistant cable and accessories
- Stainless steel metal accessories
- 850 nm and 940 nm wavelength options
- Only 9W power consumption
- 220V AC, 48V DC PoE, 24V DC versions, option : 12V DC
- Automatic day/night operation by photocell switch
- Power Led technology
- 95% energy saving compared to conventional lamps
- 15 years projected lifetime
- Quality Certificates from independent organisations
- OPTION 1: MIL-STD-461F version
- 120° intensified XL model (14W)
|
 |

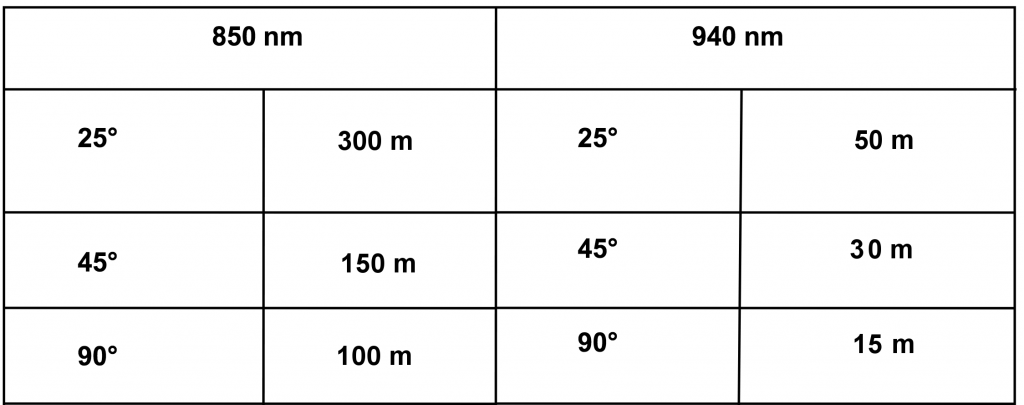

NIGHT VISION RANGES AT ABSOLUTE DARKNESS
Ranges have been obtained by 0.01 lux D/N box camera and zoom lens combin
 |
 |

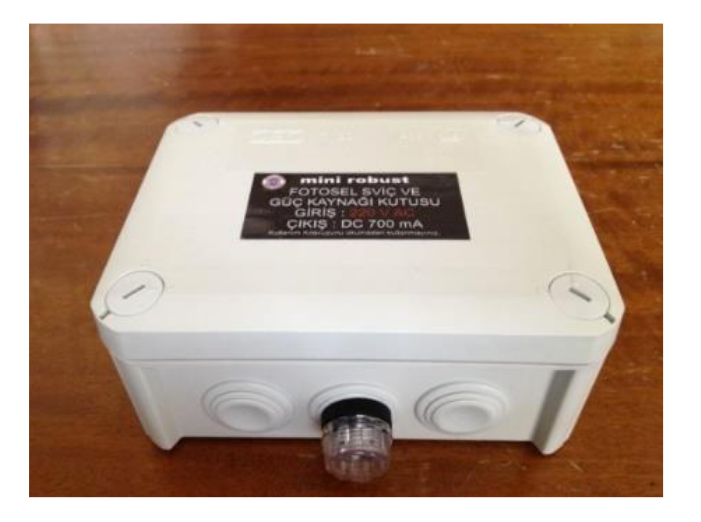

220V AC connection box with photocell
svitch and led driver, IP66 (12x15x6cm)
|

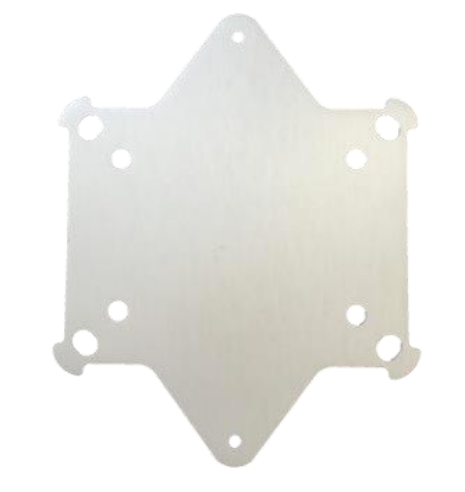

Pole mounting plate for the box |

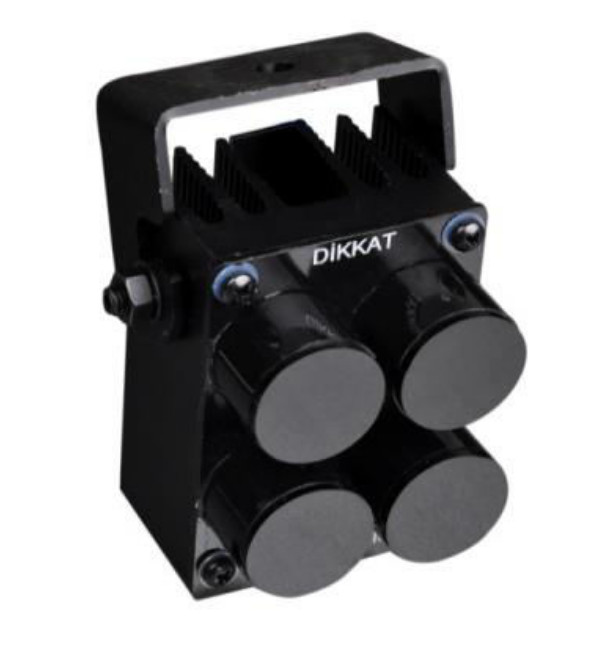

Micro Indoors
|
APPLICATIONS:
IDEAL for museums, bank branches, supermarkets, shops, office buildings,
- 90º, 30m night vision range at absolute darkness
- 4,5cmx6,5cm,aesthetic, rather small dimensions
- Power consumption: 4W only
-
24V DC ,12V DC versions available
- Pan and tilt positioning by mounting accessories
-
Brackets, suitable for wall, ceiling and camera mounting
- Power Led technology
-
Option: Photocell switch (Can operate continously w/o phetecell switch)
|
 |

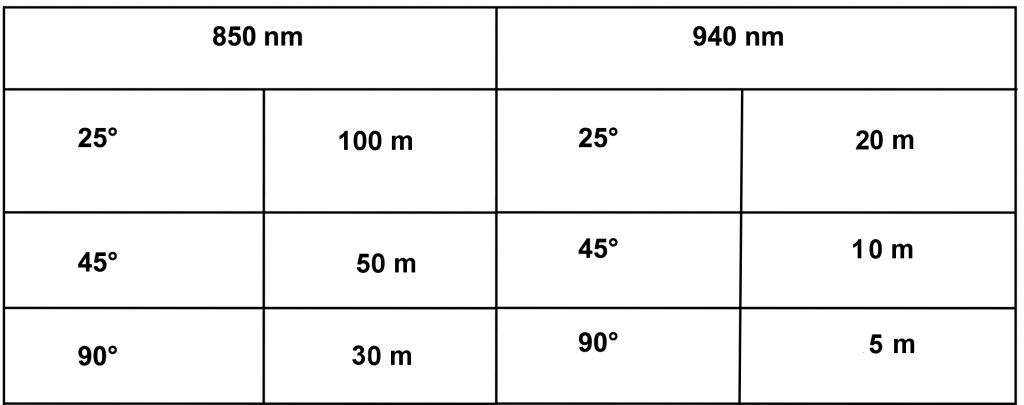

NIGHT VISION RANGES AT ABSOLUTE DARKNESS
Ranges have been obtained by 0.01 lux D/N box camera and zoom lens combin
Use arrows above to switch IR On/Off
